VISIONIX Retinomax Screen

Product Description

The Visionix Retinomax Series offers portable handheld refraction and keratometry solutions recognized worldwide for their mobility, stability, speed, and measurement accuracy. Designed for flexible vision screening and refraction workflows, the Retinomax lineup supports reliable examinations across a wide range of patient types, including pediatric and mobility-limited patients.

The series includes handheld autorefractors and autorefractor/keratometers equipped with automatic axis compensation, rapid acquisition technology, child-friendly examination modes, and optimized small pupil measurement capabilities.

Clinical Benefits

• Upwards-tilting LCD
• Improved battery life
• Even lighter and featuring an easy-to-hold grip
• Automatic Axis Compensation and extended measurement range
• New Child Mode
• Focus Assist

Exclusive Features

• Upwards-tilting LCD
• CE and FDA approve

The Retinomax Screeen Handheld Auto Refractometer combines fast and reliable refraction measurement with an upgraded user-friendly display system. Featuring automatic axis compensation and rapid 0.14-second acquisition, the device delivers accurate measurements by automatically compensating for tilt with its internal gyroscope.

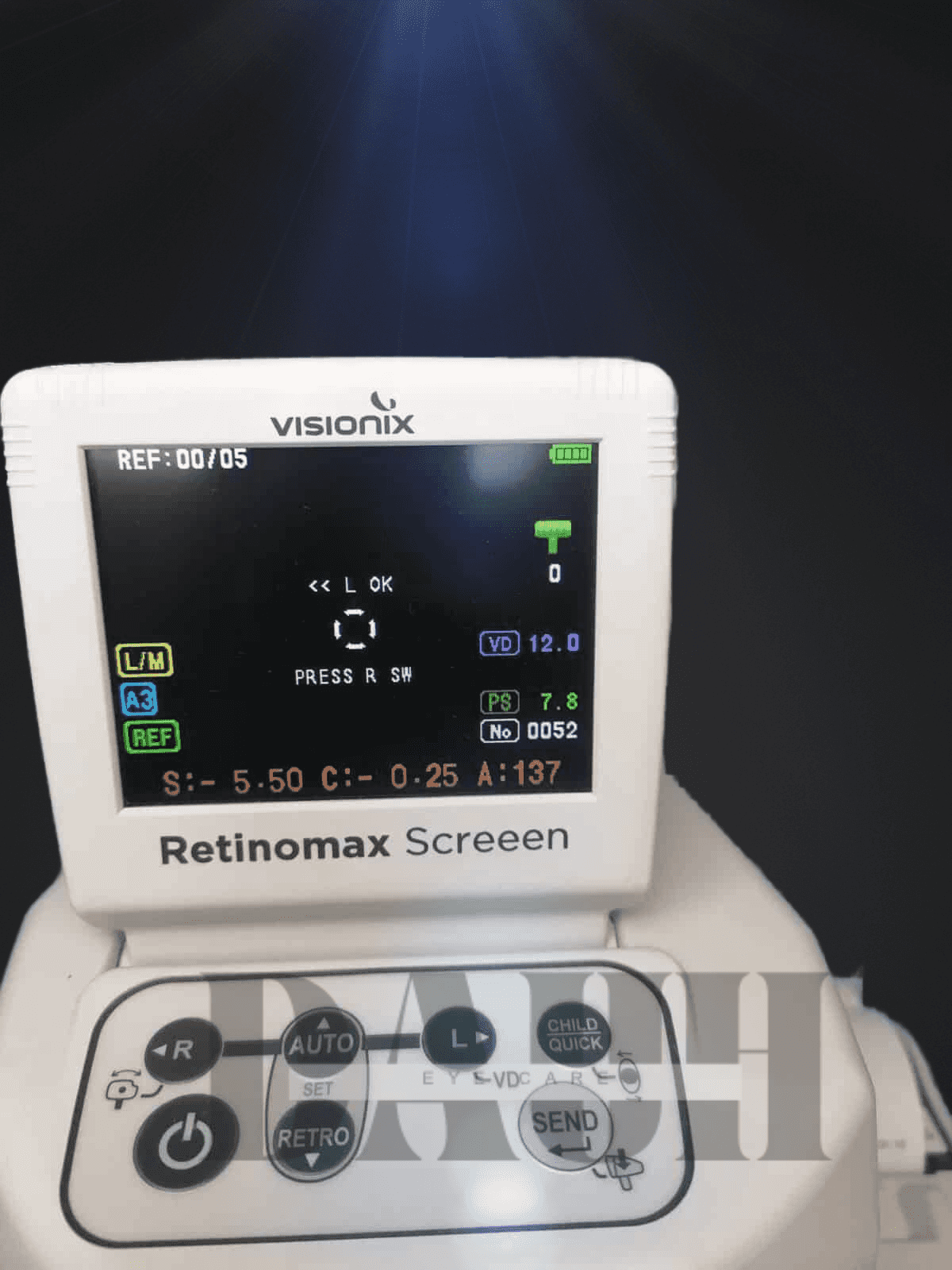

Optimized for pediatric and routine screening applications, the Retinomax Screeen supports small pupil measurements down to 2.3 mm and incorporates a Child Mode with audio and visual engagement features. Its low-reflection 3.5-inch upward-tilting LCD display improves usability and operator comfort during examinations.

Technical Specifications

• Dimensions
  WIDTH: 168 mm
  DEPTH: 202 mm
  HEIGHT: 236 mm
  WEIGHT: 960 g (without battery) 970 g (with battery)
• Features
  Refractometry Measurement range
• Spherical (S+C) -20D to +23D (VD=12mm) (AUTO/0.12/0.25D steps)
  Cylinder 0 to +/-12D (AUTO/0.12/0.25D steps)
  Pupil measurement 2.0 to 12.0 mm (in 0.1 mm increment
