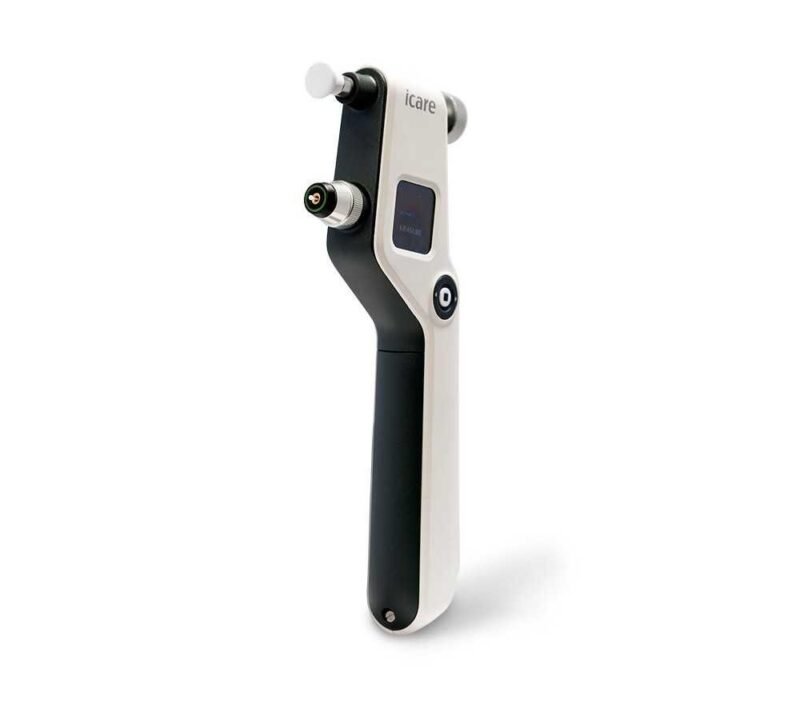

icare ic100 tonometer patented rebound technology is a reliable technique for obtaining accurate and rapid IOP measurements from all your patients. Measuring requires no anesthesia, drops, air puffs or other preparation.
The easy to use icare ic100 incorporates guiding features and an intuitive user interface to maximize efficiency in clinical routines. No specialized skills are needed, just load, align and measure. Accurate and professional’s choice.
icare ic100 tonometer Key Features:
– Icare AMS:
– Automatic measuring sequence:
– series and single mode with one button
– Icare EasyNav:
– Advanced navigation interface
– Icare EasyPos:
– Intelligent positioning assistant for the correct alignment of the tonometer

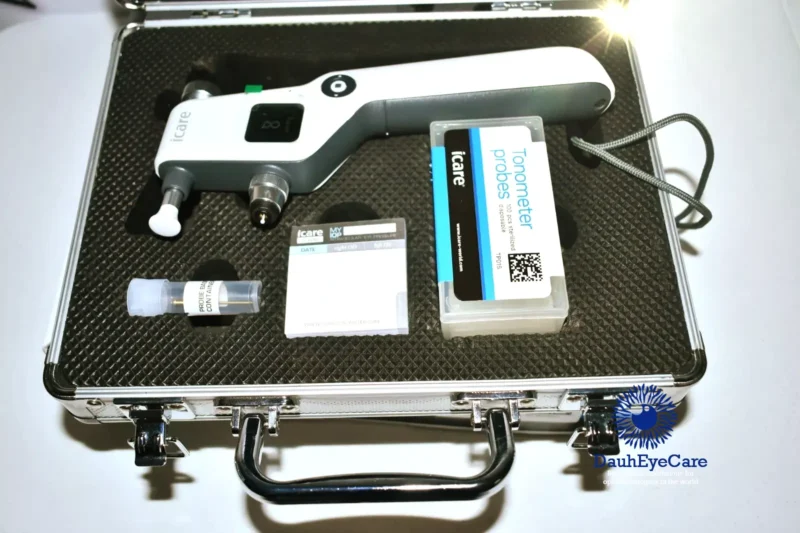

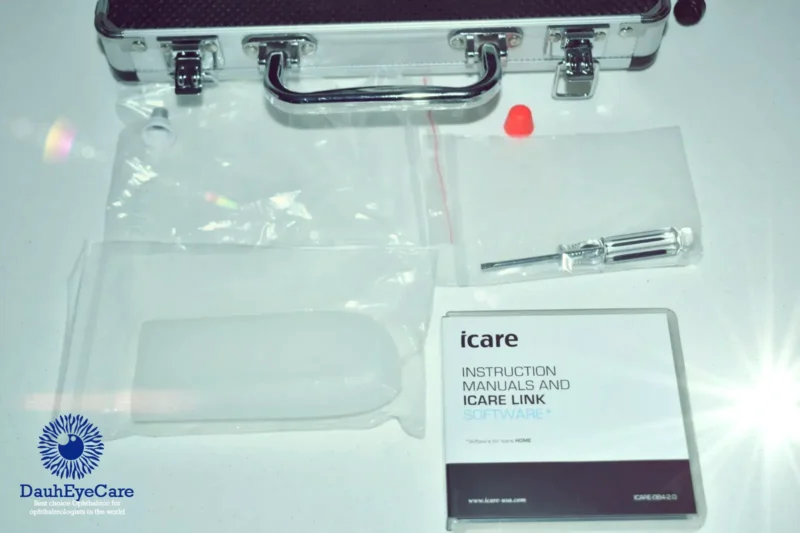

icare ic100 tonometer Package includes:
– Icare ic100 Tonometer
– 4 x AA batteries
– 100 single use probes in a box
– Aluminum case
– IOP pad
– Probe base cleaning container
– Probe base plug
– Quick guide
– Screw driver
– Silicone grip
– Spare probe base
– USB memory stick including instruction manuals
– Warranty card
– Wrist strap
EASY TO USE
Suitable for all patients
No calibration needed
Device confirms alignment
COMFORTABLE FORTHE PATIENT
Reduces anxiety
Improves compliance
Takes only a few seconds
No anesthesia or fluorescent dye
No unpleasant air puffs
Measurement barely noticeable
icare ic100 tonometer TECHNICAL DATA
| DIMENSIONS | 24 mm – 29 mm (W) x 35 mm – 95 mm (H) x 215 mm (L) |
| WEIGHT | 230 g (with batteries) |
| POWER SUPPLY | 4 x AA non-rechargeable batteries, 1.5 V alkaline LR6. |
| MEASUREMENT RANGE | 7 mm Hg – 50 mm Hg (outside the measuring range IOP is estimated). |
| ACCURACY | ± 1.2 mm Hg (≤ 20 mm Hg) and ± 2.2 mm Hg (> 20 mm Hg) |
| REPEATABILITY | < 8 % (coefficient of variation) |
| DISPLAY RESOLUTION | Nearest 1 mm Hg |
