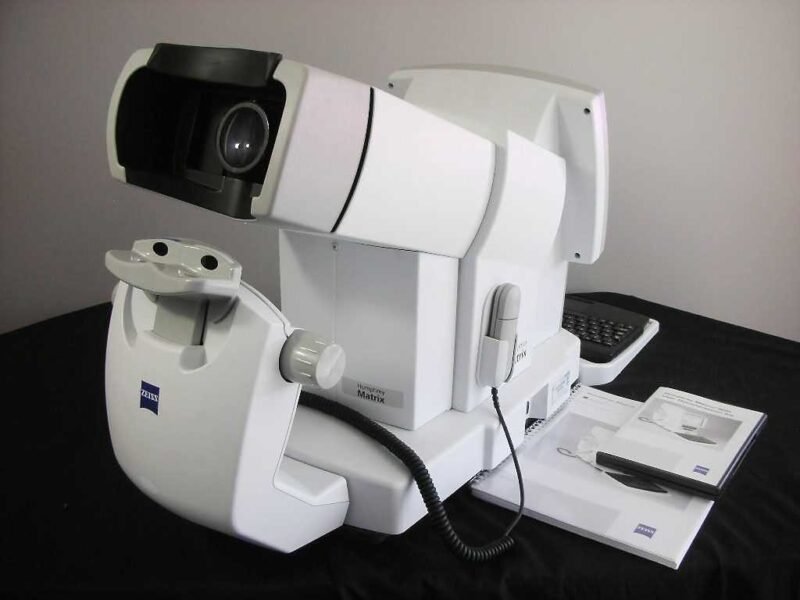

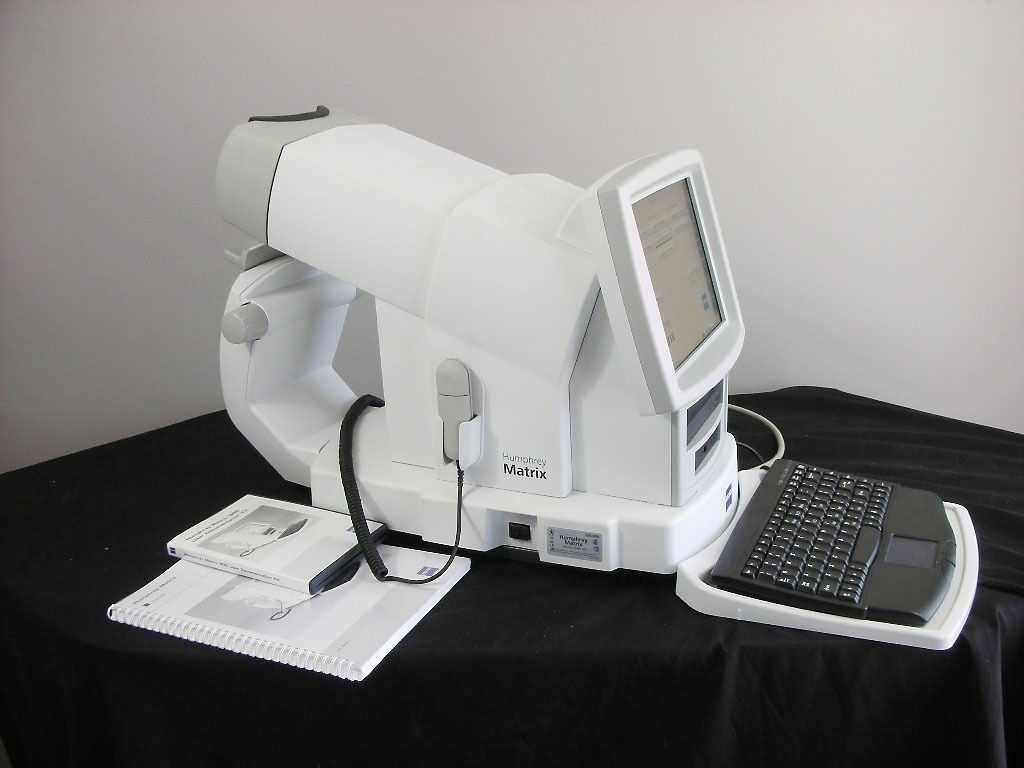

Carl Zeiss Humphrey Matrix 800 Visual Field Analyzer is the ideal solution for tests a patient’s peripheral vision such as glaucoma by early detection and treatment.
With Humphrey Matrix 800 every glaucoma diagnosed with high eye pressure, experience chronic headaches and Proven to find early visual field loss. Quickly. Easily.
Zeiss Matrix 800 features
- Connects to office network and EMR* and FORUM®.
- Frequency Doubling Technology – detects damage to the M-cells, a subset of ganglion cell.
- Large, age-related normative database.
- Fast and easy to use –no darkened room required.
- Fits in any practice –compact and portable.
- Offers reports similar to those of the Humphrey HFA, the world Standard of Care.
Humphrey Matrix 800 includes
- 1 Printer
- 1 Matrix 800
- 1 keyboard/touchpad USB
- One dust cover
- One patient button assembly
- One patient button holder
- One quick reference guide
- One symbols sheet
- 1 USB flash drive
- 1 Matrix printer read me sheet
Humphrey Matrix 800 Specifications
-Maximum temporal range (degrees): 30
-Stimulus duration: 300ms
-Visual field testing distance: Infinity
-Background illumination: 100 cd/m2
-Threshold test libraries: FDT Full Threshold: 24-2, 30-2, N-30, 10-2, Macula
-Threshold test strategy: MOBS, ZEST
-Fixation control: Video eye monitoring, Heijl Krakau fixation method, Alternative fixation targets
-Operator interface: LCD, keyboard
-Stimulus: Frequency doubled sinusoidal gratings
-Stimulus sizes
-Software features: Glaucoma Hemifield Test (GHT), Serial Field Overview, Networking, FORUM Connectivity, DICOM Connectivity
-Electrical requirements: 100-240 V, ~50/60 Hz, 200 VA max
-Standards: Meets UL, CSA, and CE standards
